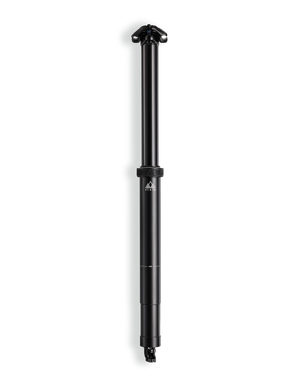

Loam Dropper Gen 2

$ 229.00 Save $ -30.00
/

Need a lever?

You'll choose one in the next step.

Reengineered for rugged climbs and technical descents, the next-generation of the Loam Dropper takes our renowned reliability to new highs… and lows. Additional sizes and a lower stack height provide a modern fit for your frame, and more room to move with less saddle in your business. A sealed dual-chamber PNW Cartridge delivers quiet and smooth fast action with a rock-solid, simple-to-service design. No matter what ups and downs the trail throws at you, you can shred easy knowing the Loam is backed by the PNW Lifetime Warranty.

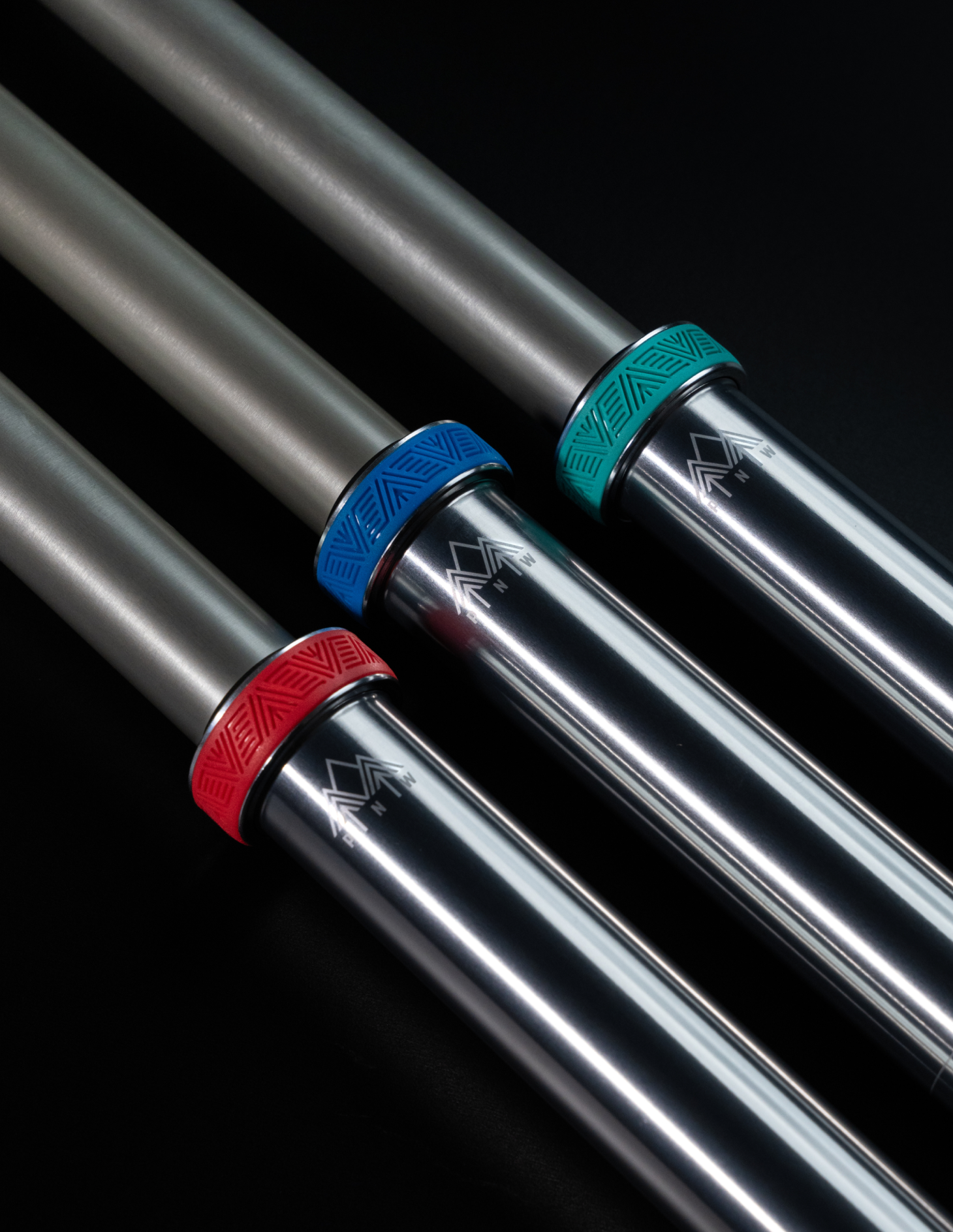

Want to customize? Find the Loam Midcap Band in all our colors here.

  • Travel Options: 125, 150, 175, 200, 225mm
  • Cartridge: PNW Dual-Chamber Sealed
  • Tool-Less Travel Adjust
  • Routing: Internal
  • PNW Lifetime Warranty

View Measurements

Get your gear for your weekend ride. We offer free expedited shipping to the Contiguous U.S on orders of $100 or more.

Do we ship internationally? Yes, we do! Check out our international shipping page here.

We've always got your back. If anything goes wrong, we're here to do everything we can to ensure you're taken care of. All PNW products come with a lifetime warranty.

View Manual

FEATURES

  • MORE DROP = MORE SEND

    An updated saddle clamp and slimmed-down midcap shave off the equivalent of 1 Gummy Bear to 3 Oreos of stack height, making room for more travel on more bikes.

  • THE LONG GAME

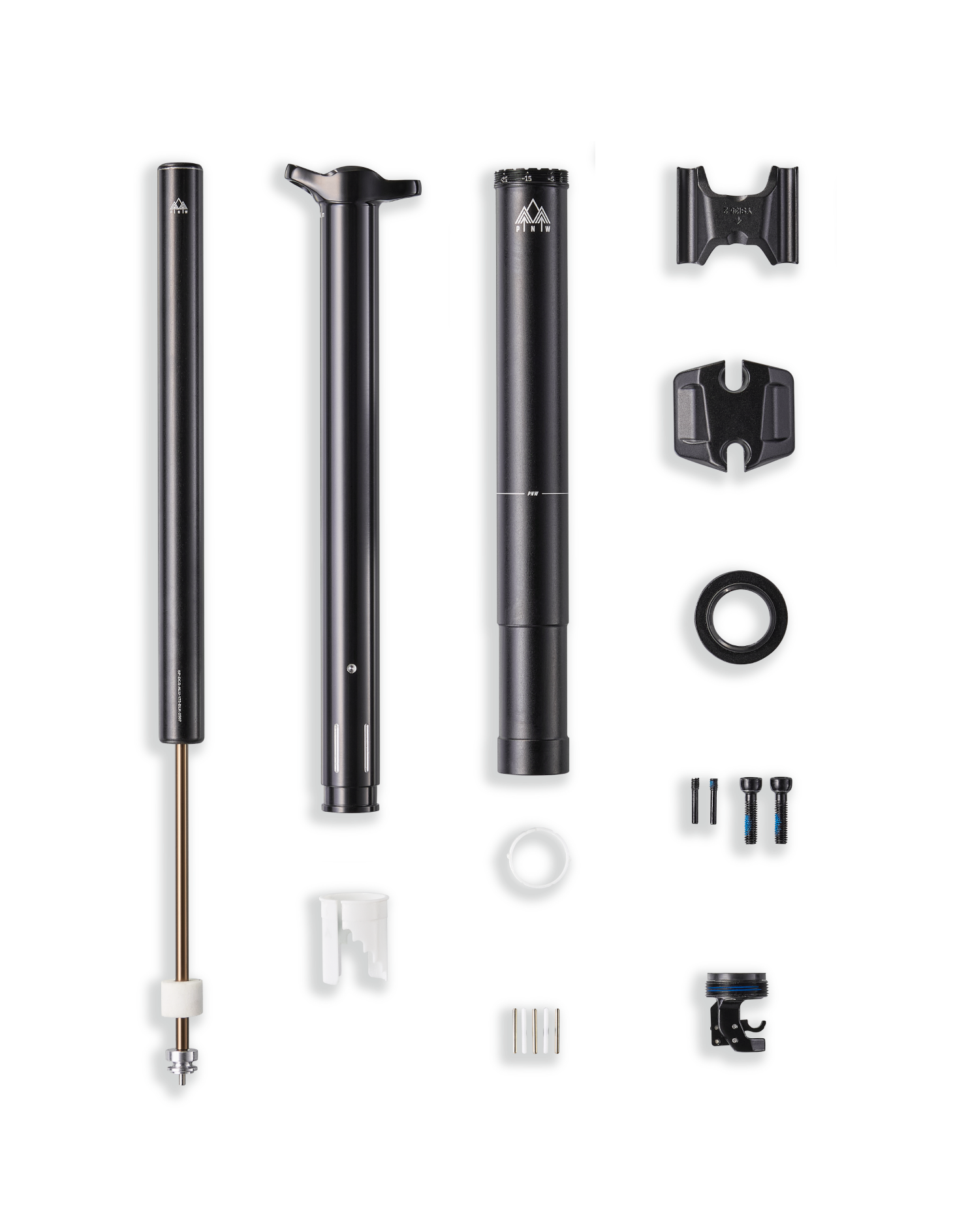

    A sealed dual-chamber cartridge delivers smooth, quiet actuation, while a revamped travel adjust design offers a stronger, longer-lasting setup.

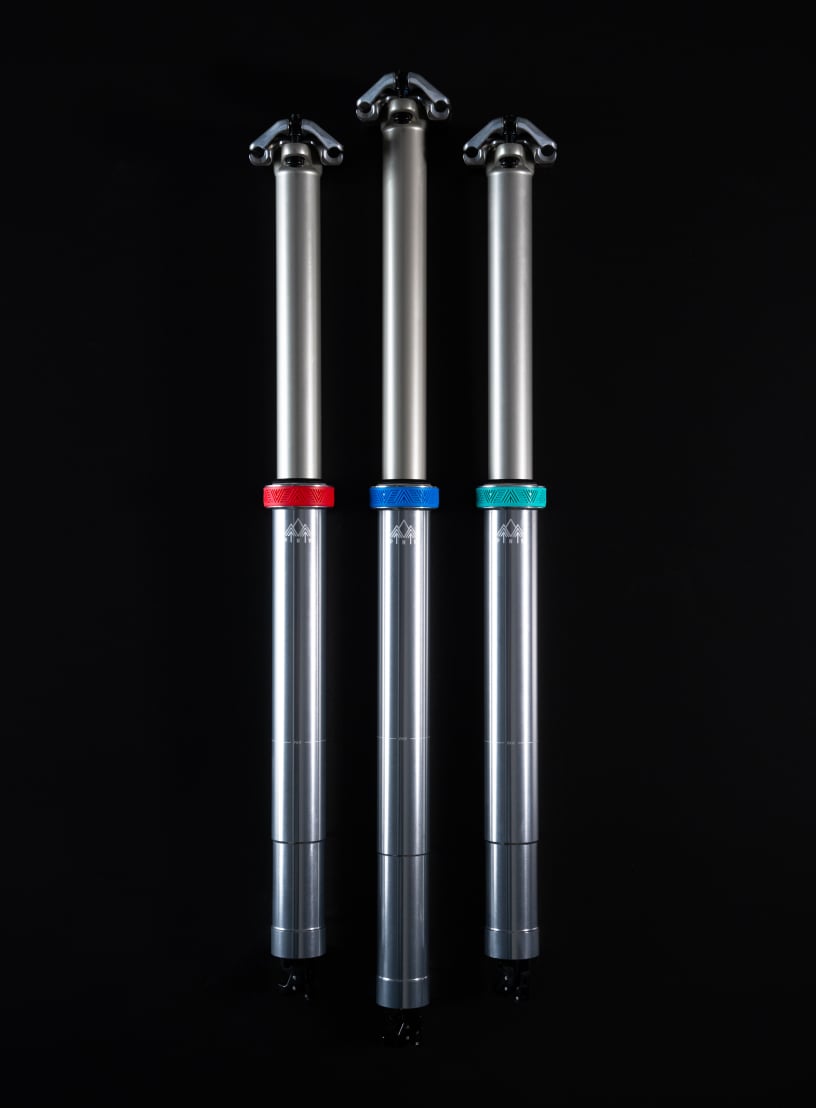

  • HI HO SILVER

    Silver is in, but making it shiny wasn’t easy. After rigorous testing, we landed on a hard ano process that delivers the same durability as our OG black finish.

MORE DROP = MORE SEND

An updated saddle clamp and slimmed-down midcap shave off the equivalent of 1 Gummy Bear to 3 Oreos of stack height, making room for more travel on more bikes.

THE LONG GAME

A sealed dual-chamber cartridge delivers smooth, quiet actuation, while a revamped travel adjust design offers a stronger, longer-lasting setup.

HI HO SILVER

Silver is in, but making it shiny wasn’t easy. After rigorous testing, we landed on a hard ano process that delivers the same durability as our OG black finish.

MEASUREMENTS

ATravel125mm150mm175mm200mm225mm
BSeat Collar to Center of Rails156mm181mm206mm231mm256mm
CTotal Length382mm435mm485mm537mm600mm
DMin. Insertion Length90mm120mm120mm150mm
190mm
EFull Insertion Length 226mm254mm279mm306mm344mm
*30.9 Weight 452g
490g524g560g614g
*31.6 Weight470g510g544g580g636g
*34.9 Weight516g556g596g636g700g
View Dropper Size Calculator

QUESTIONS?

Cartridge: PNW Dual-Chamber Sealed Cartridge

Routing Method: Internal

Diameters: 30.9mm, 31.6mm. 34.9mm

Weight: 452g-700g (depending on size)

Travel: 125mm, 150mm, 175mm, 200mm, 225mm

Stanchion Diameter: 30.9mm & 31.6mm: 26mm, 34.9: 29mm

Lever Compatibility: Compatible with all PNW levers and most cable-actuated levers from other brands.

25mm of tool-less travel adjust in 5mm increments hits every 5mm increment between 100 and 225

Like most of us, PNW dropper posts need a little TLC to work their best. This service can be done at home, but if you're not feeling that grease stain life, we can take care of it for you. Our service program treats your PNW dropper post for regular wear and tear. Learn More >>>

Using the Dropper without the white nylon Travel Adjust bushing can lead to damage to the dropper and will void the warranty. It is required for the proper function of the post. If your Travel Bushing is damaged, please contact us at info@pnwcomponents.com for a replacement.

Start by checking if your bike is externally or internally routed. The Loam is only compatible for internally routed frames. Second check the seat tube diameter. Want help finding the right dropper for your bike? Click here >>>

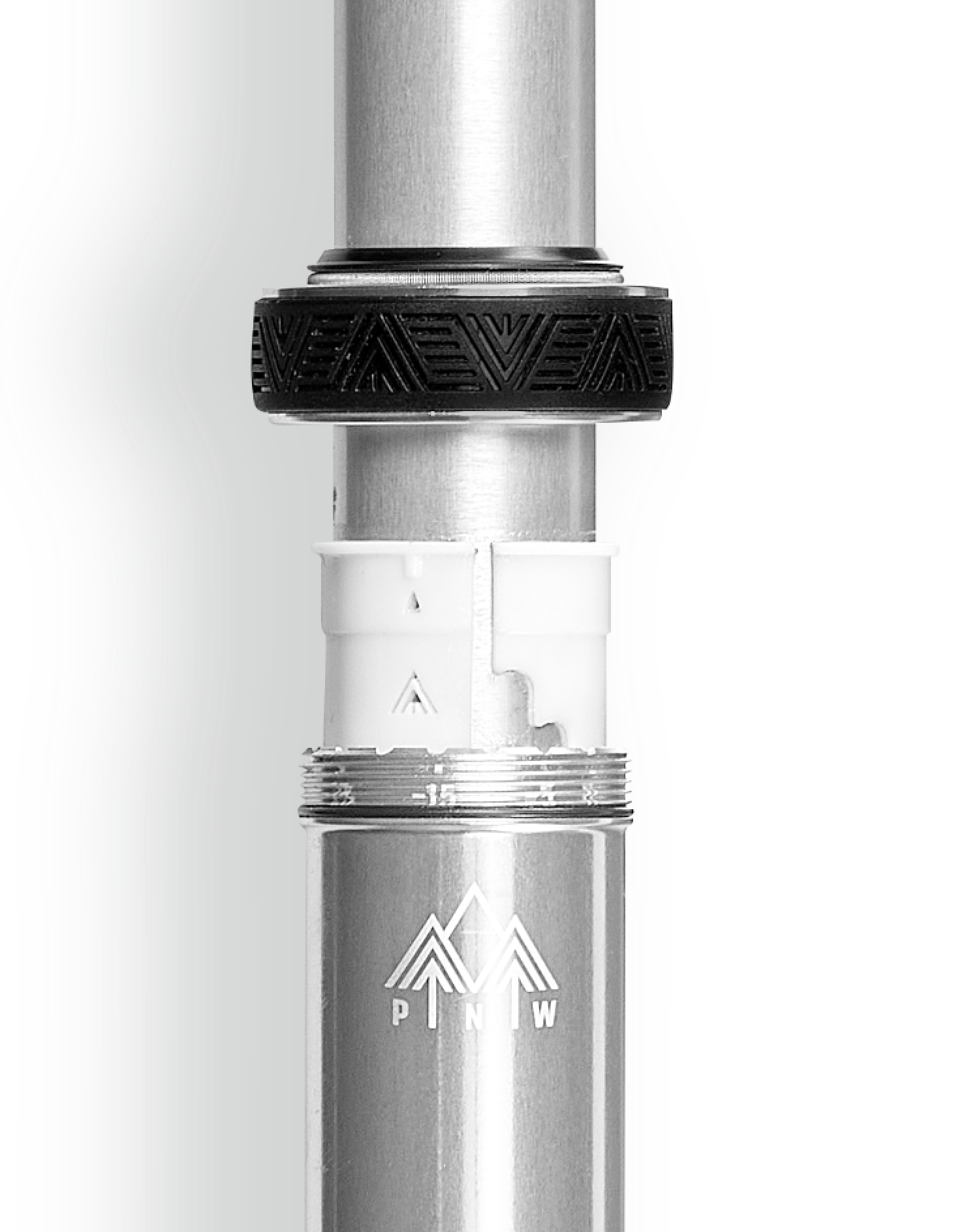

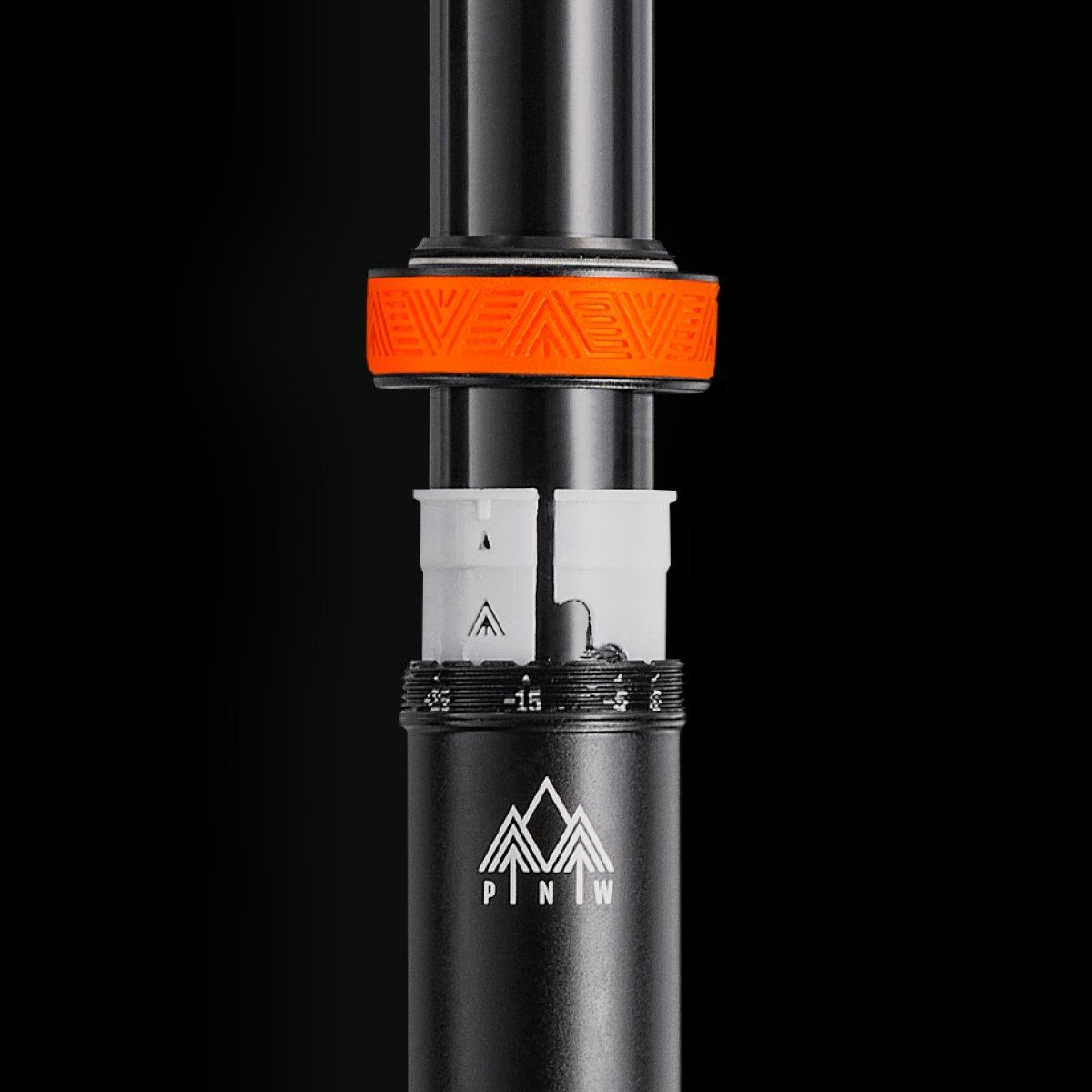

This system allows you the maximum drop for your post size. We accomplish this through a notched bushing under the midcap collar so you can dial in a more tailored fit. The Gen 2 tool-less travel adjust has an updated shape and burlier design for enhanced durability. 25mm of tool-less travel adjust in 5mm increments allows riders to hit every 5mm increment between 100mm and 225mm.

As riding frequency and conditions vary, we do not have a strict service interval. Instead, we recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process. Check out our service video's here.
