Pedals

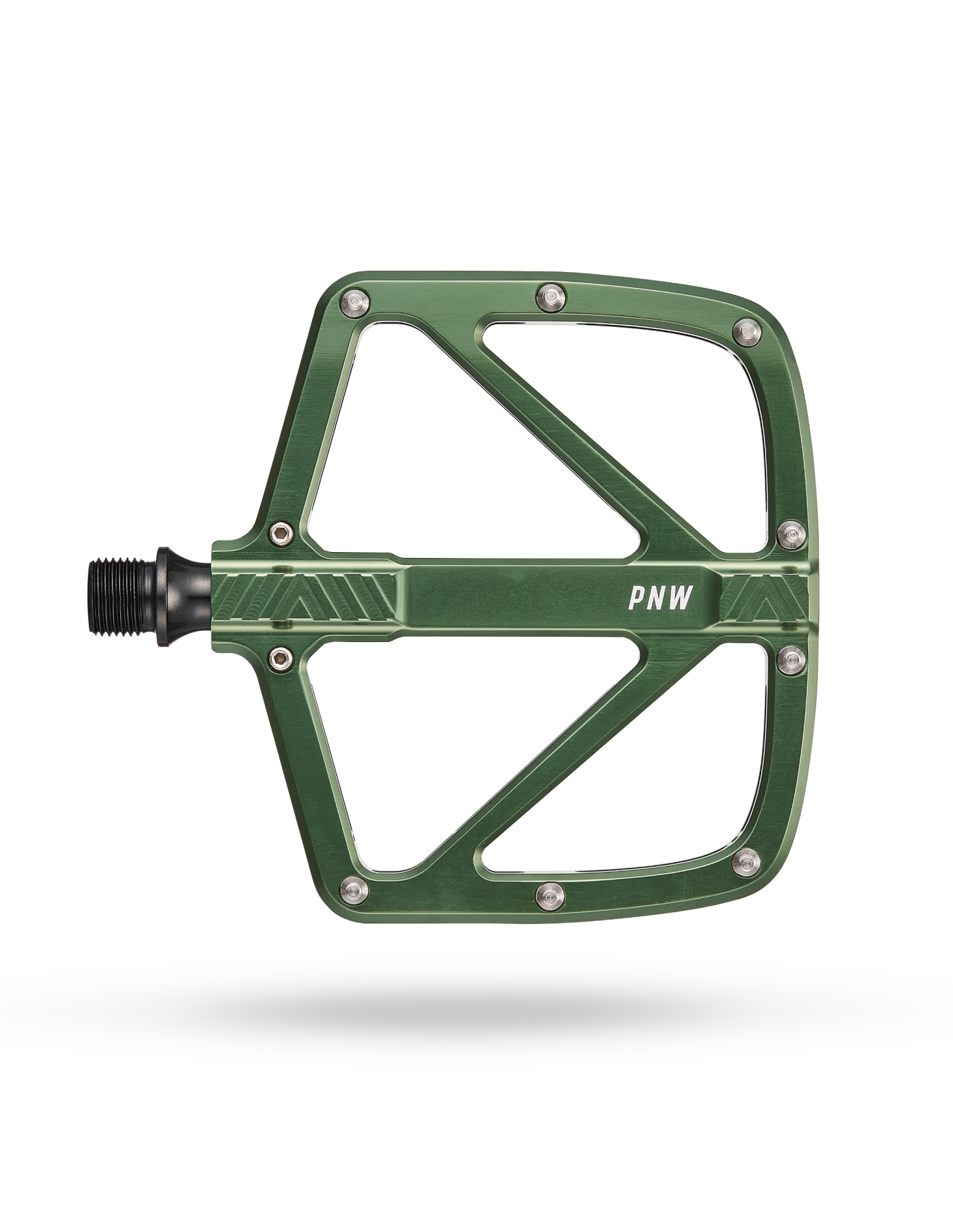

Loam Alloy Pedals Gen 3

$159.00 Save $-159.00
/
The PNW Lifetime Warranty
Free Shipping on orders $100 +
Free and Easy Returns

Like riding clipless without the clipout, the Gen 3 version of the Loam Pedals are super sticky and combine a strong, redesigned axle system with a foot cradling platform that keeps you locked in and ready to shred.

  • CNC’d Pedal Body
  • Tectonic™ Pins
  • EFBE Tri-Test E-Gravity certified
  • Height: 115mm, Width: 109mm
  • Weight: 440g

We've always got your back. If anything goes wrong, we're here to do everything we can to ensure you're taken care of. All PNW products come with a lifetime warranty.

Get your gear for your weekend ride. We offer free expedited shipping to the Contiguous U.S on orders of $100 or more.

Do we ship internationally? Yes, we do! Check out our international shipping page here.

Features

  • PIN IT

    Stainless steel pins from Tectonic™ offer incredible grip and durability with an ease of maintenance.

  • STRONGERER

    The Gen 3 harnesses an easy-to-service, redesigned axle system with the strength approval of the EFBE’s Tri-Test E-Gravity certification.

  • GET THE SPINS

    Two sealed cartridge bearings and an oversized bushing keep your pedal spinning freely while shedding away trail grime.

PIN IT

Stainless steel pins from Tectonic™ offer incredible grip and durability with an ease of maintenance.

STRONGERER

The Gen 3 harnesses an easy-to-service, redesigned axle system with the strength approval of the EFBE’s Tri-Test E-Gravity certification.

GET THE SPINS

Two sealed cartridge bearings and an oversized bushing keep your pedal spinning freely while shedding away trail grime.

QUESTIONS?

Length115mm
Width109mm
Platform Height15.5mm front/ back
14mm center
17mm over axle
Pin styleTectonic & Cylinder thread
Pins per side10x per side, 12x total in pedal
ColorsBlood Orange, Moss Green, Fruit Snacks, Lightning, BlackOut Black
Weight440g combined, 220g each
Threaded cylinder pin hex size2mm for threaded cylinder pin
Tectonic Pin Set Screw size2mm for Tectonic Set Screw
Pedal body end cap
6mm
Axle nut5mm
Bearing Type and Count Per Pedal
1x Sealed Cartridge Bearing, 1x Needle Bearing, 1x Bushing, 1 O-Ring and 1x Wiper Seal
Platform MaterialAluminum
Pin MaterialStainless Steel SUS 630
Axle MaterialAlloy Steel SNCM220
Manufacturing process
Extruded + CNC'd + Anodized + Laser
Axle nut torque rating
5-6NM
Tectonic Pin Set Screw Torque Rating
1.5NM
Threaded Cylinder Pin Torque Rating
1NM


Stainless steel patented Tectonic™ traction pins offer incredible grip, durability, and ease of maintenance. The Tectonic™ pin system reduced our pin count from 22 to 12 pins per pedal. The pins run vertically through the pedal body and are easily replaced with outboard 2.5mm set screws. Replacing all pins is much faster than traditional systems, and if a pin is severely thrashed during a moment of shred, it’s still easily replaceable. Tectonic™ traction pins are patented by Tectonic Components of Colorado, USA.

The pedal platform is CNC’d and finished with laser-etched details.

Yes. The Gen 3 Loam Pedals are EFBE Tri-Test E-Gravity certified, meaning they are good to go for the most aggressive riding, including e-bikes and DH riding.

Yes, in the package you’ll find a small parts envelope with 2x Tectonic pins, 2x set screws, and 2x pedal washers.
